The complete guide
How to measure your fridge before buying a water filter
More water filters get returned for not fitting than for not filtering. Fridge interiors are a mess of moulded shelves, door bins and lips, and the numbers on a product page rarely map cleanly onto them. Here is how to check properly.
Measure the gap, not the shelf
The mistake is measuring the shelf and comparing it to the product dimensions. What you need is the clear opening — the space actually available once the moulding, the retaining lip and any bottles already living there are accounted for.
Take three measurements with a tape:
- Clear width between the door bin's side walls, at the narrowest point.
- Clear height from the shelf floor to the underside of whatever is above it. On a door this is often the limiting one.
- Depth from the back wall of the bin to the inside of the retaining lip.
This jug needs 11.7 cm of width, 27 cm of height and 26 cm of depth.

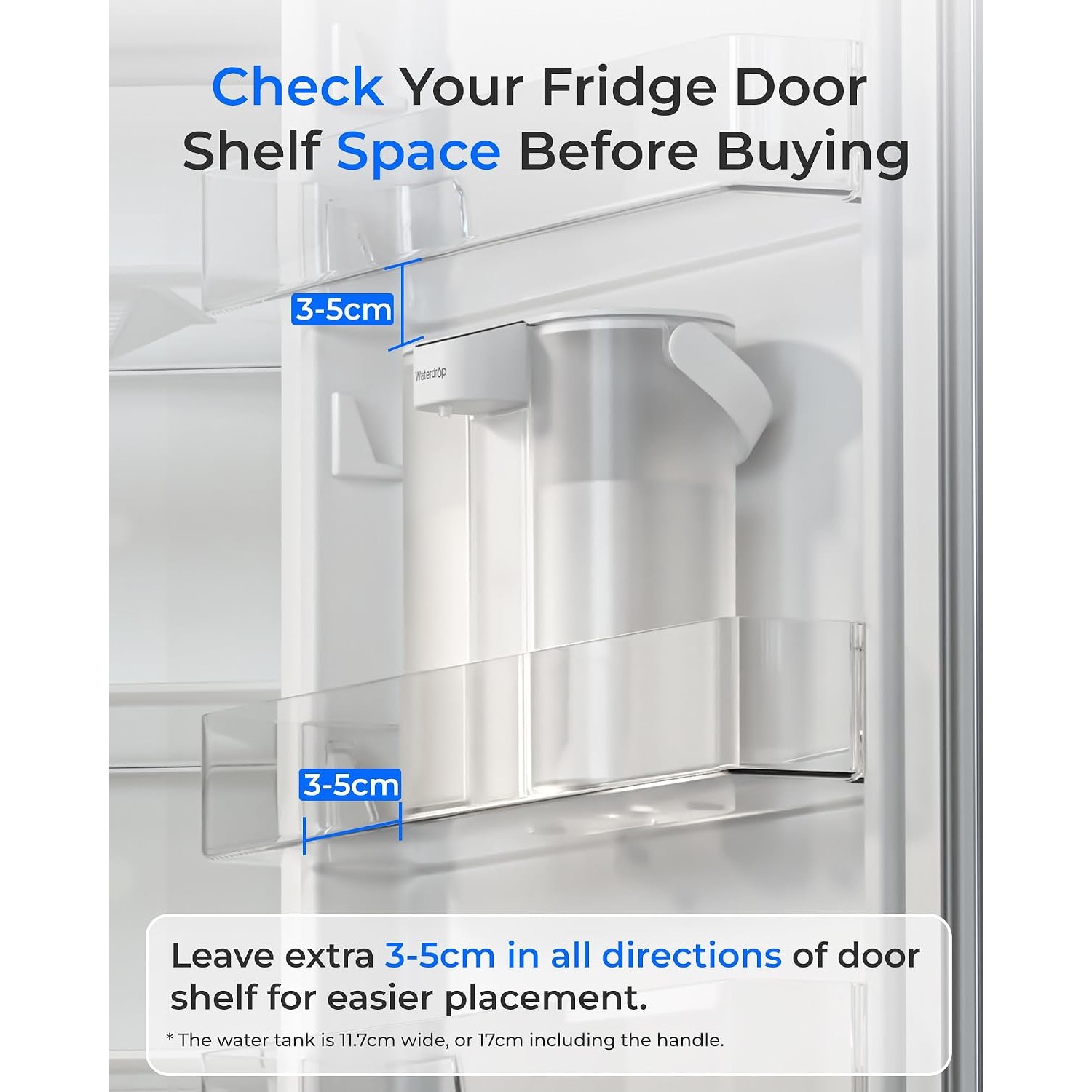

Add clearance, or you will hate it
A container that technically fits is not the same as a container you can get in and out one-handed while holding a glass. Waterdrop suggest 3 to 5 cm of extra room, and that is sound advice for any fridge item you will handle daily.
The height clearance matters most. You have to lift the jug vertically over the retaining lip before you can pull it out, so if the gap above is exactly the height of the jug, it does not come out at all.
The three fridges that catch people out
- Integrated fridges. Door bins are shallower because the door carries the cabinetry panel. Width is usually fine; depth often is not.
- Under-counter fridges. Short doors mean short bins. Check height twice.
- Fridges with a moulded egg tray or bottle rack. These eat the very shelf you were planning to use, and are frequently not removable.
American-style and tall freestanding fridges are usually the easy case, with generous full-height door bins.
If it does not fit the door
You have three reasonable options, in ascending order of change:
- Use a shelf instead. This jug stands upright on a normal fridge shelf and its narrow footprint still saves space compared with a round jug.
- Go slimmer and taller. A dispenser like the WFD-04L is 14.1 cm wide but taller, with a tap, and is designed to be filled in place rather than lifted out.
- Stop refrigerating it. A worktop dispenser with active chilling, such as the Aqua Optima Lumi, gives you cold water without using fridge space at all.
One measurement people forget
Check the tap or spout height against your tallest glass or bottle. A filter that fits the fridge beautifully but cannot fill your water bottle without tipping it sideways is a daily annoyance. On this jug you hold the glass under the spout at the front, so the constraint is the spout-to-base gap, not the fridge at all.
